Universal Laptop Adaptor PAB90-BC10
Charge
a laptop battery with this Multi-Function Laptop AC
Adapter & Charger! Plus, you can charge or supply power for an MP3,
mobile phones, digital cameras, camcorders and other related device
with the standard USB output.
The 1.6-inch LCD screen displays
the charging and power status with red and blue dual colours. It
features Worldwide use with input between 100 - 256V! Ten
exchangeable tips are included. Charge the power of your devices and
stay productive! |
General Features:
- Charge a laptop battery separate from laptop
- Supply power for laptop computers and LCD televisions and other equipments
- Input: 100 - 265V ~ 1.8A 50/60 Hz
- Adapter Output: 12V-22V MAX 5A (90W)
- Charger Output: 10.8V3A or 11.1V3A (MAX 12.6V) / 14.4V3A or 14.8V3A (MAX 16.8V)
- USB output: 5V 1A (MAX) 5W
- USB Output: charge or supply power for MP3, mobile phones, digital cameras and other related device with standard USB output
- 1.6-inch LCD display: displays the charging and power status with red and blue dual
colours

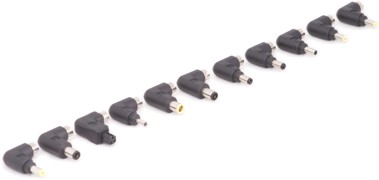

- Ten (10) exchangeable connectors
- Size: 13.2 x 5.8 x 2.9cm
|
|
 PAB90-BC10 Manual:
Includes Plug Listing
BC10_Manual.pdf
Regulatory Approvals:
Package Includes: - Multi-Function Laptop AC Adapter & Charger
-
Ten (10) Tips
- Power cord to Australian STD Power
Socket 3 Pin
- User Manual (also lists accessories, etc.)
|
 |
DC connectors Specification of LS-PAB90-BC10
|
|
= Supplied in the PAB90-BC10 Kit |
| |
= Optional Available |
NOTE: Plugs shown for tip illustration purposes only.
PAB90-BC10 is supplied with straight plugs only, not Right angled as shown.
|
No
|
Click To Enlarge |
Output
Voltage
|
Range
Voltage
|
Output
Current
(max)
|

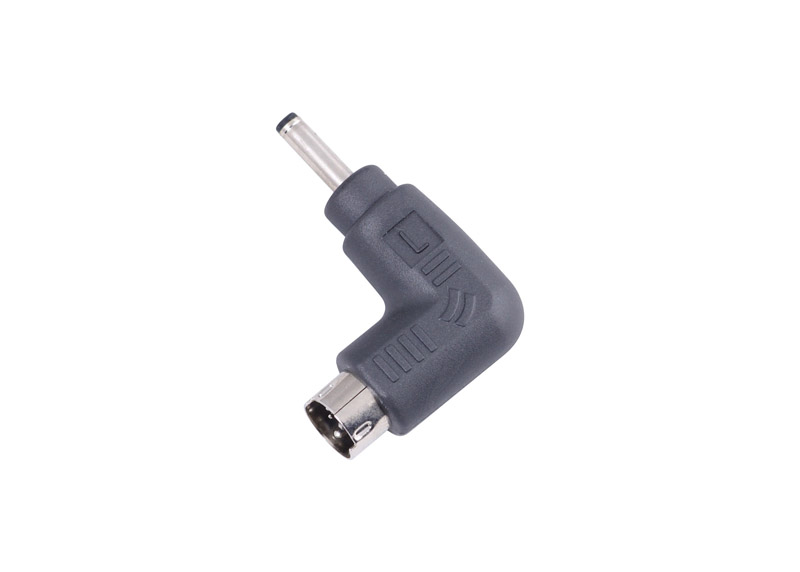

Connectors Spec.
|
Replacement
|
|
A
|
 |
19V
|
18.1-19.9V
|
4.74A
|
4.8*1.7*10.7 mm DC-F
|
HP/COMPAQ:18.5V/2.7A, 18.5V/3.5A,
18.5V/3.8A, 18.5V/4.9A;
DELTA:19V/2.64A; ASUS:19V/2.64A;
NEC:19V/2.64A etc.
|
|
B
|
 |
15V
|
14.3-15.7V
|
5A
|
6.3*3.0*10.7 mm
|
TOSHIBA:15V/3A, 15V/4A, 15V/5A, 15V/6A; NEC:15V/6A etc.
|
|
C
|
 |
19V
|
18.1-19.9V
|
4.74A
|
5.5*2.1*10.7 mm DC-F
|
ACER:19V/3.16A, 19V/3.42A, 19V/4.74A;
LITEON:19V/3.16A, 19V/3.42A;
NEC:19V/3.16A etc.
|
|
D
|
 |
19V
|
18.0-19.9V
|
4.74A
|
5.5*2.5*10.7 mm DC-F
|
IBM:19V/4.2A; DELL:19V/3.16A, 19V/3.42A;
COMPAQ/HP:18.5V/4.9A, 19V/4.9A;
DELTA: 19V/2.64A.;
TOSHIBA:19V/3.16A, 19V/3.42A, 19V/4.74A;
ASUS:19V/4.74A.LS:20V/3.25A;
LITEON:19V/3.16A, 19V/3.42A, 19V/3.95A,
19V/4.74A; NEC:19V/2.64A, 19V/3.16A;
GATEWAY:19V/3.16A, 19V/3.42A,
19V/3.68A, 19V/4.74A etc.
|
|
E
|
 |
16V
|
15.2-16.8V
|
5A
|
5.5*2.5*10.7 mm DC-F
|
IBM:16V/2.2A, 16V/3.36A, 16V/3.5A, 16V/4.5A etc.
|
|
F
|
 |
19V
|
18.1-19.9V
|
4.74A
|

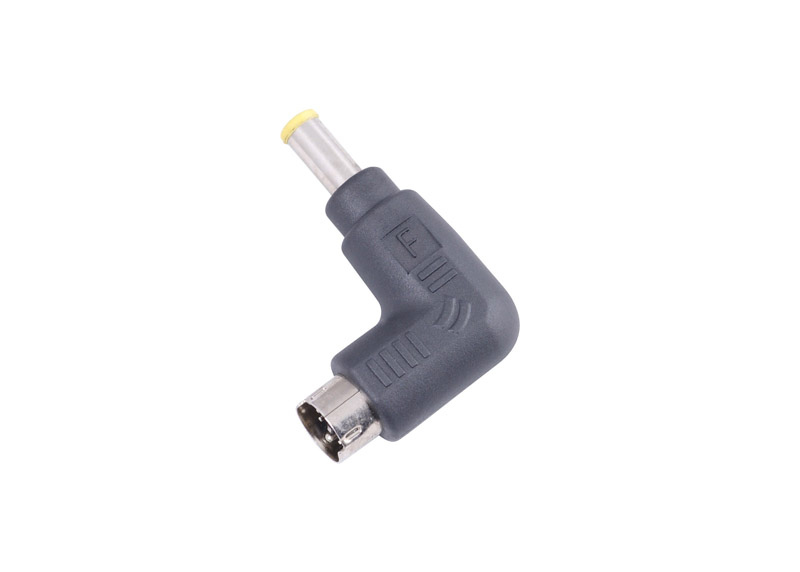

5.5*3.0*10.7mm pin1.0
|
SAMSUNG: 19V/3.16A, 19V/3.75A, 19V/4.22A,
19V/4.74A etc.
|
|
G
|
 |
16V
|
15.2-16.8V
|
5A
|

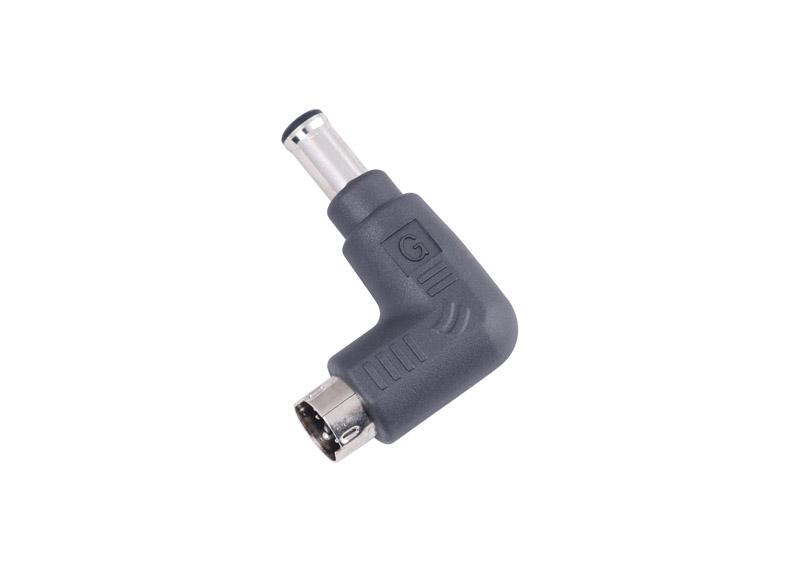

6.0*4.3*10.7 mm pin1.0
|
SONY: 16V/3.42A, 16V/3.75A, 16V/4A.
FUJITSU: 16V/3.36A, 16V/3.75A etc.
|
|
H
|
|
19.5V
|
18.5-20.4V
|
4.62A
|
6.0*4.3*10.7mm pin1.0
|
SONY: 19.5V/2.7A, 19.5V/3A, 19.5V/4.1A, 19.5V/4.7A;
FUJITSU: 19V/3.16A, 19V/3.69A, 19V/4.22A etc.
|
|
I
|
|
19V
|
18.1-19.9V
|
4.74A
|
5.5*1.7*10.7mm DC-F
|
TOSHIBA: 19V/3.95A; ACER: 19V/3.42A;
DELTA: 20V/3.5A etc.
|
|
J
|
 |
19.5V
|
18.5-20.4V
|
4.62A
|
7.4*5.0*12.5 mm pin0.6
|
DELL: 19.5V/3.34A, 19.5V/4.62A etc.
|
|
K
|
 |
20V
|
19.0-21.0V
|
4.5A
|

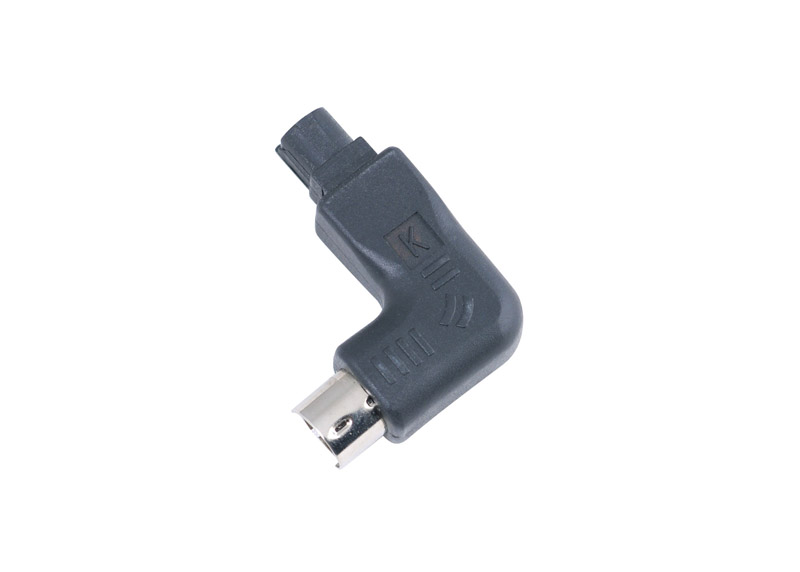

W7.3*7.4 mm
|
DELL: 20V/3.5A, 20V/4.5A etc.
|
|
L
|
 |
22V
|
20.9-23.4V
|
4A
|
3.5*1.35*9.5 mm
|
SHARP: 22V/1.8A, 22V/2.04A etc.
|
|
M
|
 |
20V
|
19.0-21.0V
|
4.5A
|

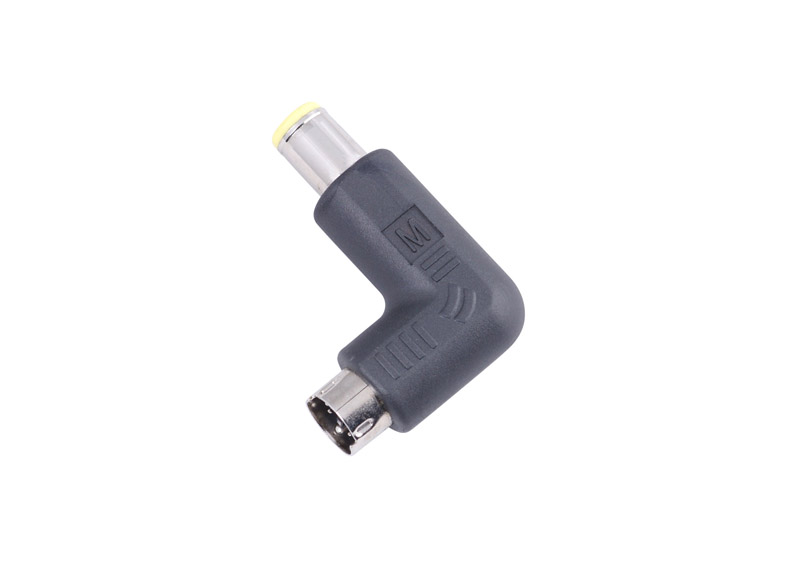

7.9*12 φ9.5 mm
|
IBM/LENOVO: 20V/4.5A, 20V/3.25A etc.
|
|
Q
|
|
18.5V
|
17.6-19.4V
|
4.9A
|
7.4*5.0*12.5 mm pin0.6
|
HP/COMPAQ: 18.5V/4.9A etc.
|
|
R
|
|
12V
|
11.4-12.6V
|
5A
|
5.5*2.5*10.7 mm DC-F
|
LCD
|
|
S
|
|
14V
|
13.3-14.7V
|
5A
|
5.5*2.5*10.7 mm DC-F
|
SAMSUNG: 14V/3A, 14V3.4A etc.
|
|
T
|
|
19V
|
18.1-19.9V
|
4.74A
|
3.5*1.35*10.7 mm DC-F
|
…
|
|
U
|
|
9.5V
|
9.0-10.0V
|
5A
|
4.8*1.7*10.7 mm DC-F
|
ASUS: 9.5V/2.315A etc.
|
Charging Cables for
mobile phone, MP3, Bluetooth and other digital products
PAB90-BC10 CHARGE MOBILES & MP3 TOO! GREAT AS A TRAVELLERS
COMPANION
Carry only one power source when travelling!
The PAB90-BC accepts 100-265Vac so is global (req. a mains plug adaptor).
PAB90-BC10 will charge/run your laptop and with the included USB socket can
also charge/run other portable USB devices. With the addition of a CT-CABLE
and appropriate CT adaptors, you can now simultaneously charge your mobile
phone too! CT-CABLE plugs into the USB socket & changes voltage to suit:
REQUIRES USB-CABLE + CT PLUG
|
|
= Requires CL960 -
MiniUSB Cable |
| |
= Requires CT-CABLE
adaptor cable |
| |
= NOT Available |
|
P/N
|
Brand
|
Compatible Model number
|
|
CT-NK01A
|
FOR Nokia
|
E50, E61, E62, E65, E90, N70, N71, N72, N73, N75, N76, N77, N80, N83, N90, N92, N93, N95, S60, 770, 1255, 2865, 3110, 3152, 3250, 5300, 5500, 6070, 6080, 6085, 6101, 6102, 6103, 6111, 6125, 6126, 6131, 6152, 6265, 6268, 6288, 6270, 6275, 6280, 6300, 7360, 7370, 7373, Bluetooth
|
|
01B
|
FOR Nokia
|
1100 1110 1600 2100 2280 2300 2310 2325 2610 2626 3100 3105 3018 3120 3200 3220 3230 3300 3315 3330 3410 3510 3530 3560 3610 3650 5100 5110I, 5140, 5210, 5200, 5510, 6020, 6021, 6030, 6060, 6100, 6108, 6110, 6111, 6150, 6170, 6200, 6220, 6225, 6230, 6232, 6235, 6250, 6255, 6260, 6340, 6500, 6510, 6600, 6610, 6630, 6650, 6670, 6680, 6681, 6708, 6800, 6820, 6822, 7110, 7200, 7210, 7250, 7250I, 7260, 7270, 7280, 7380, 7390, 7600, 7610, 7650, 7700, 7710, 8210, 8250, 8310, 8800, 8810, 8850, 8910I, 9110, 9210C, 9300, 9500, 9810, N-GAGE
Bluetooth Capitel 009
|
|
CT-MT02A
|
FOR Motorola
|
A668, A732, A7780, A1200, C168, C305, C335, C350, C362, C363, C381, C550, E375, E380, E680, E680I, E680G, E690, E770, E1070, F3, L2, L6, L6G, L6I, L7, L7C, L7E, L9, Q, U6, V3, V3C, V31, V31E, V3X, V3M, V6, V150, V191, V320, V360, W220, W355, W375, KRZR:K1, K2, MAXX:V3, V6, MPX, MPX220, ROKR:E2, E3, E6, E9, RIZR:Z3 Z6 Z8,
Bluetooth NEC170 PAS:OK315 UT227
|
|
CT-SS03A
|
FOR Samsung
|
D528, D808, D828, D838, D848, D900, D908, E258, E428, E488, E698, E778, E878, E898, E900, E908, F300, F369, F519, I320, I718, M359, P308, P310, X828,
Z550
|
|
CT-SS03C
|
FOR Samsung
|
D418, D428, D608, E378, X168, X488, X508, X708
|
|
CT-SE05A
|
Sony Ericsson
|
J100, J220, J230, K200, K220, K310, K320, K510, K550, K610, K618, K620, K750, K758, K790, K800, K818, P990, M600, M608C, V630, W200, W300, W550, W600, W610, W700, W710, W800, W810, W830C, W850, W880, W888C, W900, W950, W958C, Z310, Z520, Z530, Z550, Z558, Z610, Z710C
|
|
CL960
|
Mini-USB Plug (1.5M)
|
Kinds of digital products with Mini-USB
input, GPS units, iPods, MP3 players, and much more...
|
More USB Charging options available. Use our "UTC" Series
of USB Charger cables available from
Cellink. To purchase, look up your
model of mobile phone or PDA, GPS, etc. and take note of the
corresponding "UTC" Code to order from WES Components.
www.cellink.com.au
Notes: all
the above involved brands are owned by the original manufacture.
|
|
